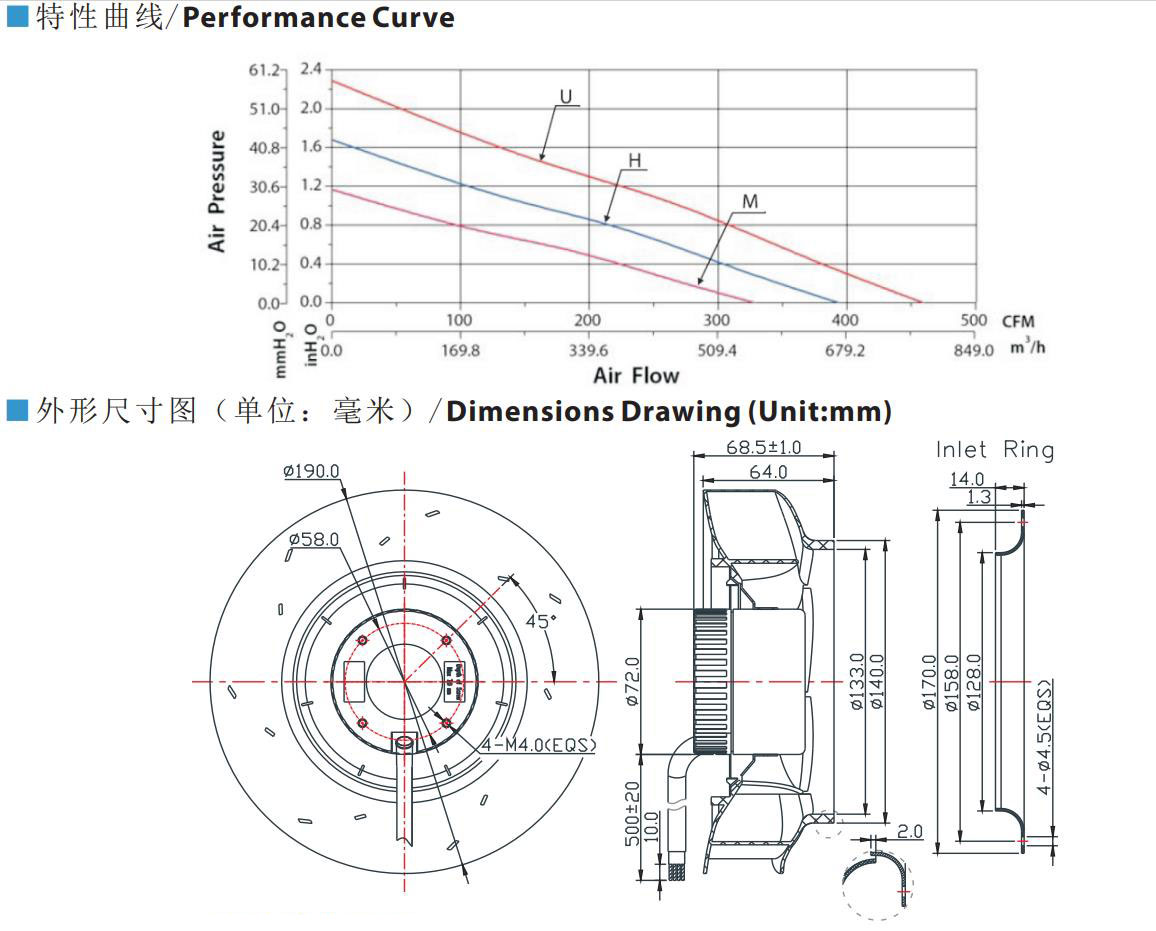

DC 离心风扇 (∅190*64) DC Centrifugal Fans
材料：叶轮：PA6,UL94V-0 Material:Impeller: PA6 UL 94V-0 Reinforced Plastic
转子：电泳黑色 Rotor:costed in black
绝缘等级：Class B Insulation: Class B
电机防护等级：IP44 Type of protection: Ip44
电气特性：控制信号输入0~10VDC/PWM Technical features:Control input 0-10 VDC/PWM
速度反馈信号：过载、过压、堵转、极性保护 Tach output:Protection of Overland,Overvoltage,Locked-rotor and Polarity
CE 认证 Approvals:CE
产品规格：
| 型号列表 | 电机型号 | 额定工作 | 工作电压 | 额定电流 | 额定转速 | 风量 | 风压 | 噪音 | 工作温度 | 重量 |
| Listed Model | Motor System | Rated Voltage | Operating Voilage | Rated Current | Rated Speed | Air Flow | Air pressure | Noise Level | Operating Temperature | Weight |
| mm | VDC | VDC | A | RPM | CFM | inH₂O | Dba | °C | Kg | |
| QF19068H1B | DC72 | 12 | 9.6-14.4 | 7.6 | 3500 | 477.9 | 2.43 | 67 | -20~+70 | 0.8 |
| QF19068M1B | 9.6-14.4 | 4.8 | 3000 | 409.6 | 1.78 | 63 | ||||
| QF19068L1B | 9.6-14.4 | 2.8 | 2500 | 341.2 | 1.24 | 58 | ||||
| QF19068H2B | 24 | 16.0-28.0 | 3.8 | 3500 | 477.9 | 2.43 | 67 | |||
| QF19068M2B | 16.0-28.0 | 2.4 | 3000 | 409.6 | 1.78 | 63 | ||||
| QF19068L2B | 16.0-28.0 | 1.4 | 2500 | 341.2 | 1.24 | 58 | ||||
| QF19068H4B | 48 | 36.0-57.0 | 1.9 | 3500 | 477.9 | 2.43 | 67 | |||
| QF19068M4B | 36.0-57.0 | 1.2 | 3000 | 409.6 | 1.78 | 63 | ||||
| QF19068L4B | 36.0-57.0 | 0.7 | 2500 | 341.2 | 1.24 | 58 |
接线方式/Connection methode
红色线/ 接电源正极
黑色线/Blue-----接电源负极
黄色线/Yellow--0～10V/PWM速度控制/0～10V/PWM Speed Control
白色线/White---信号输出/FG
